Tubular Stranding Machine
The HH-630 tubular stranding machine is one of the machines in the stranding step of the wire and cable manufacturing process. It is suitable for stranding the core wires of conductors with smaller wire diameters and has a built-in center line untwisting function. The machine is mainly used for twisting 7-strand cables with a 6+1 structure. It is named so because its shape is similar to a tube.
Follow Us
Inquiry Now

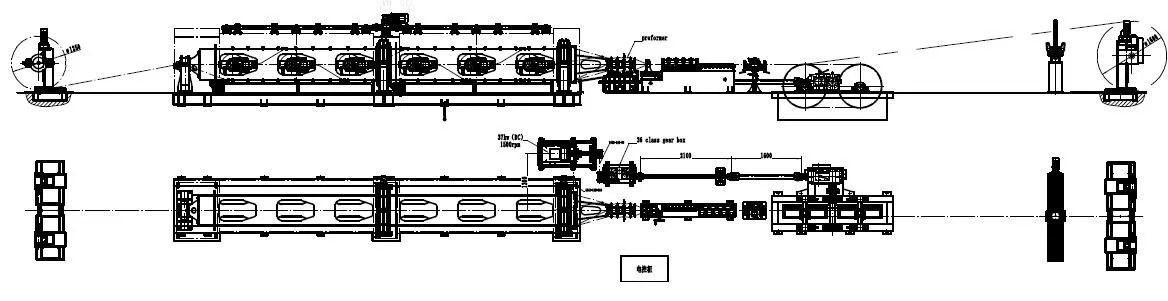

2. Equipment production line overview
Application:
HH-630 tubular stranding machine is mainly used for twisting 7-strand cables with 6+1 structure, suitable for control cables, aluminum stranded wires, copper stranded wires, etc. The appearance of the equipment is designed by professionals, and the production process has been upgraded. It has a grand appearance, high-speed and stable operation, and low noise.
Main Equipment Parameters
| No. | Item | Technical Specifications |
|---|---|---|
| 1 | Monofilament Diameter | Copper: φ1.2–5.0mm / Aluminum: φ1.8–5.0mm26 |
| 2 | Max Stranding Diameter | φ15mm6 |
| 3 | Max Cage Rotation Speed | 500 RPM5 |
| 4 | Stranding Wheel Diameter | φ1300mm5 |
| 5 | Central Pay-off Tube | φ630mm5 |
| 6 | Cage-type Pay-off Stand | φ630mm5 |
| 7 | Take-up Spool | φ800–1600mm5 |
| 8 | Main Motor Power | 45kW AC motor25 |
Standard Configuration of Production Line System
| No. | Item | Quantity |
|---|---|---|
| 1 | φ630mm Manual Unreeler | 1 set |
| 2 | φ630/6 Wire Cage | 1 set |
| 3 | Wire Twisting Die Holder | 1 set |
| 4 | Length Counter | 1 set |
| 5 | φ1300mm Stranding Machine | 1 set |
| 6 | φ1600mm Horizontal Take-up Machine | 1 set |
| 7 | Transmission System | 1 set |
| 8 | Electrical Control System | 1 set |
| 9 | Safety Cover | 1 set |
Brief description of commonly used 630 steel wire:

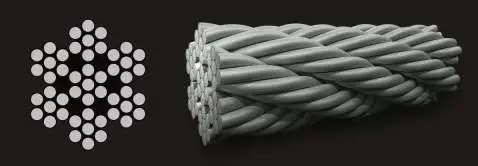

As we all know, tubular stranding machines are the stranding equipment commonly used by ordinary wire rope manufacturers, from conventional 1+6 structures, to 7*7 wire ropes, and then to 1+6+19 wire ropes. 7x7 AISI316 stainless steel wire ropes are widely used. The 7x7 structure is more flexible than 1x19, but stiffer than 7x19, and is generally used in applications where 1x19 lacks sufficient flexibility, or where the weaker breaking load of 7x19 is too low for the application. 7x7 is widely used throughout the marine industry as well as general engineering applications, and its excellent breaking load and flexibility with smaller diameters make it the first choice for control cables and various marine rigging applications, examples of which are shown below.

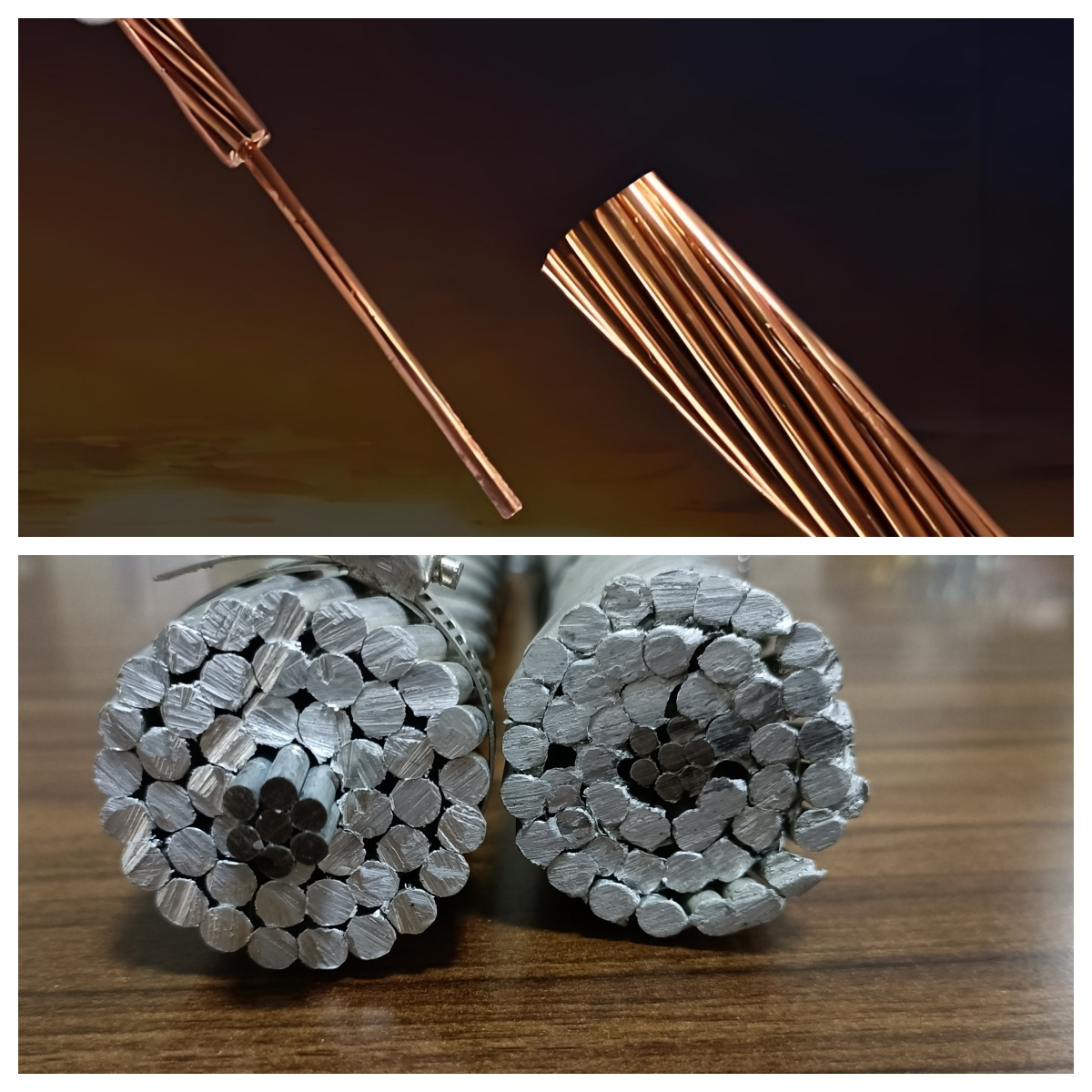

Some finished product samples:
High Speed Double Twist Bunching Machine 560-800
This device is designed to be used on producing bare conductor stranding for steel , copper , Aluminum , etc . Adopting and modifying famous European twisting machine design to achieve higher stability and manufacturing capacity . Wire twisting range could be : rigid stranded conductor (class 2) , flexible stranded conductor (class 5).
